Controller quick exhaust valve QE/SQE series
โคกาเนอิ นิวเมติก

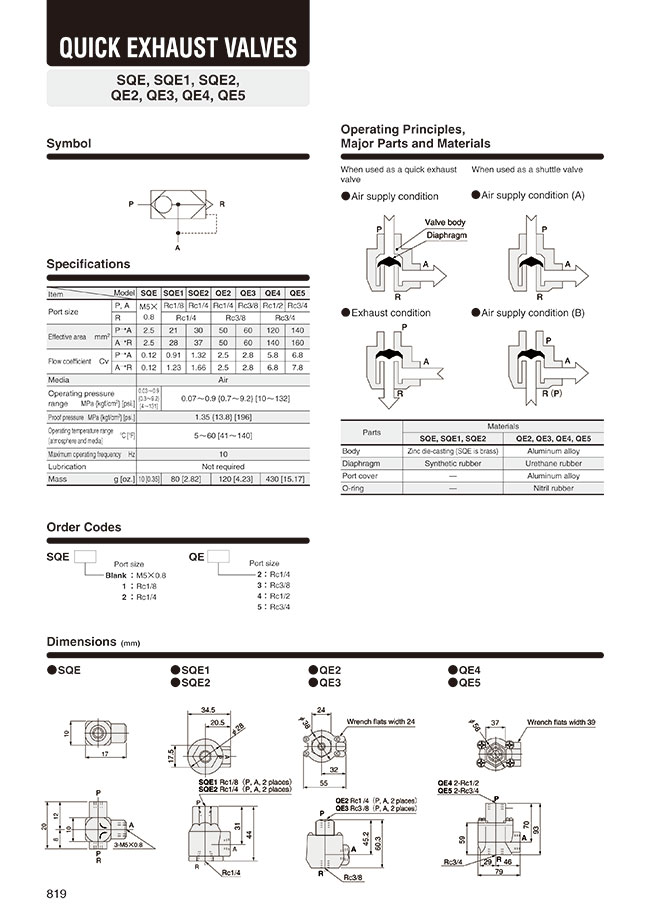

Controller quick exhaust valve QE/SQE series
| Type | Quick Exhaust Valves | Material | Brass |
|---|---|---|---|
| Seal Material | Synthetic Rubber | Input Side, Port Type P (P1) | Female Thread |
| Output Side, Port Type A | Female Thread | Exhaust Side, Port Type R | Female Thread |
| Operating Pressure Range(MPa) | 0.03～0.9 | Effective Sectional Area, Forward Direction(mm2) | 2.5 |
| Effective Sectional Area, Exhaust Air(mm2) | 2.5 | Piping Screw in the Input Side | M5 |
| Piping Screw in the Output Side | M5 | Exhaust Side Plumbing Threads | M5 |
