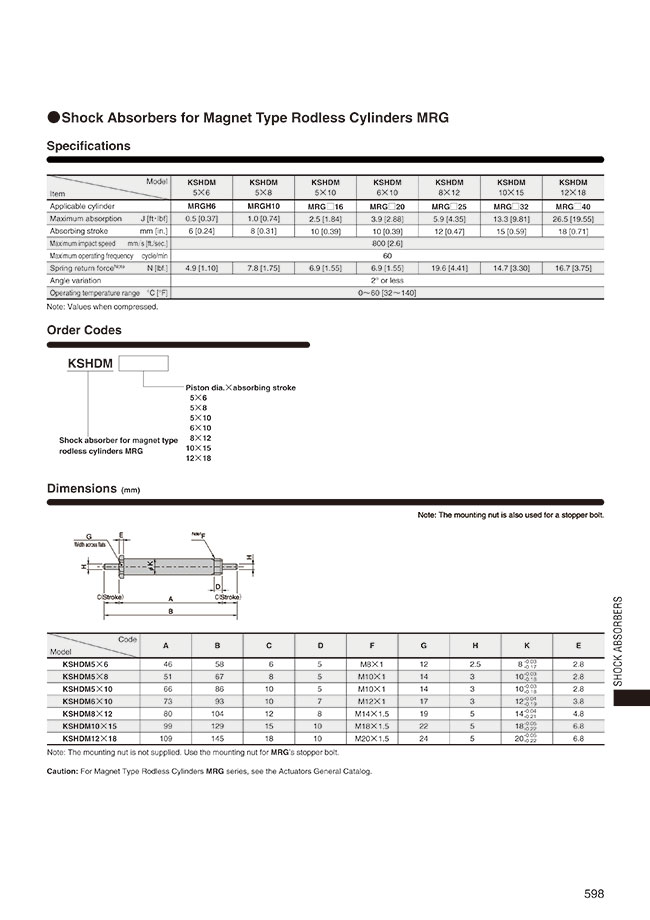

Auxiliary Component Shock Absorber KSHDM Series
| Main Body/Related Parts | Main Body | Structure | Fixed Type |
|---|---|---|---|
| Absorption Stroke(mm) | 8 | Mounting Screw Nominal M | M10 |
| Nominal Mounting Screw [M] | 10 | Maximum Absorption Ability(J) | 1 |
| Orifice Type | Multi-orifice | Operating Environment | Standard |
| Body Material | [Brass] Brass | Max. Collision Velocity(m/s) | 0.8 |
| Full Length(mm) | 67 | Piston Rod Return Force(N) | 7.8 |
| Max. Operating Cycle(cycle/min) | 60 | Outer Dia. D(Ø) | 10 |
| Allowable Angular Misalignment(deg) | 2 | Operating Temperature Range(°C) | 0～60 |
